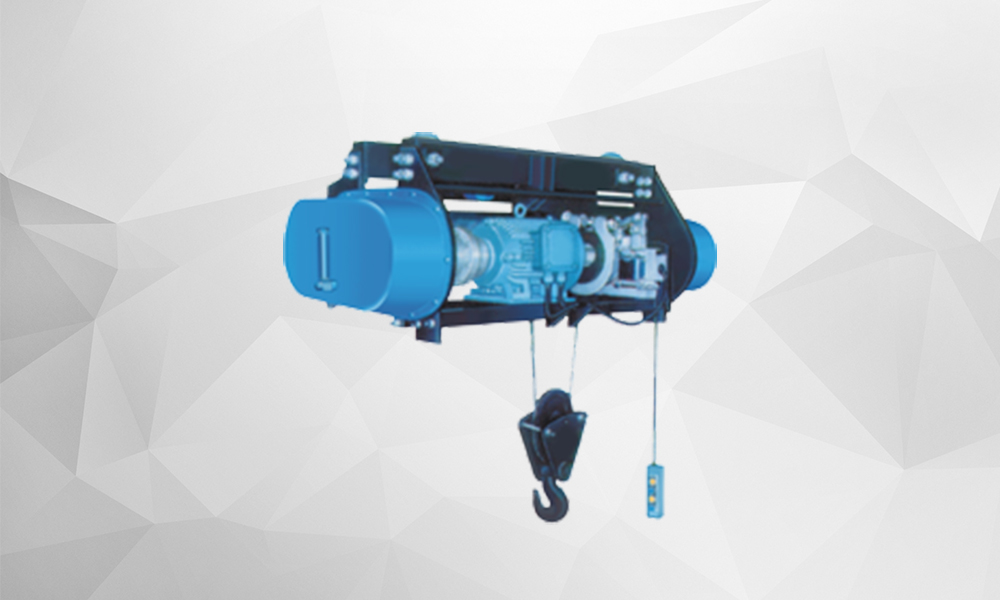

Hi-Tech Electric wire rope Hoist :
Advantages of “Hi-Tech” Electric Wire Rope Hoist :
Design :
“Hi-Tech” Hoists are designed as per lates IS:3938.
Modular Construction :
“Hi-Tech” Hoists are very compact with elegant appearance. Hoist motor, brake, electrical control gears & trolley drive Unit are easily accessible. Each unit can be separately assembled and can be easily dismantled. This simplifies repairs, maintenance cost and down time.
Gear Boxes :
The gear train is precision hob cut from alloy steel material duly heat treated for optimum wear resistance. The gears are running on antifriction ball bearing in a totally enclosed oil bath gear box with splash lubrication of all gears & pinions for fast heat dissipation, smooth operation and long life.
Rope Drum :
The rope drum is of sturdy construction made of M.S. Seamless pipe and machined cut spiral grooves mounted on self-align ball bearings ensure smooth running.
Rope Guide :
A rope guide completely encircling the drum is to hold the rope in its groove at all the times and can not uncoil even-when the rope is fully unloaded. Rope guide is provided for perfect winding for rope in drum groove.
Motor :
Motor are totally enclosed, fan cooled, squirrel cage crane duty confirming to IS : 325 with high starting torque.
Brake :
A. C. Electromagnetic FAIL-TO-SAFE shoe/disc type brake for hoisting motion which ensures perfect safety in case of power failure. It is mounted externally on the rear end of the motor for ease of maintenance.
Control Panel:
A dust & vermin proof control panel incorporates heavy duty Contactors, control transformers, relays, HRC fuses with proper ferruling & spacious for ease of maintenance.
Limit Switch :
Snap action type roller limit switches are provided to avoid over-hoisting and over lowering actuated by rope guide.

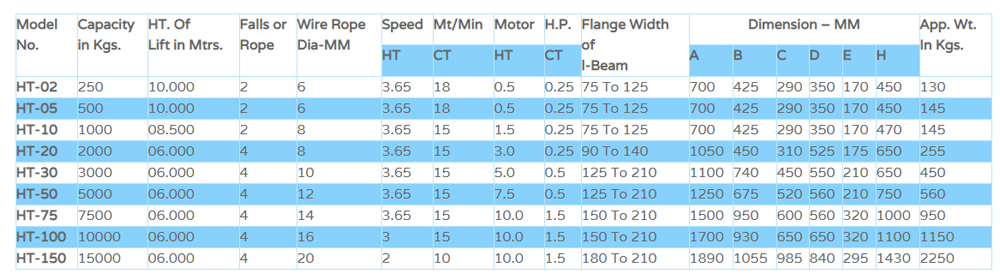

Technical Specification of “Hi-Tech” wire Rope Hoist to IS : 3938
